Tempo UniSpace fire-rated access panel, certified EI60 and EI90, for walls, ceilings and service ducts

Fire Rated Access Panel 60/90 Minutes UniSpace - Image 2

Fire Rated Access Panel 60/90 Minutes UniSpace

Discover the UniSpace 60/90 Fire Rated Access Panel, perfect for walls and ceilings, offering 60/90 minutes of fire protection, 39 dB acoustic insulation, and Class 4 airtightness.

Acoustic Absorption Fire Protection Smoke Protection

Dimensions larger than 600x600mm are only available for wall applications. WALL USE ONLY.

From £392,75

Dimensions shown as width × height

Dimensions

Clear

Please select an option *

For false ceiling

For partition wall

⚠️ Please select an option before adding to cart.

Compare

Add to wishlist

OH NO! Can't find the access panel you need? Don't worry:

Find my access panel

Fast and secure delivery

In Stock!

Have Questions?

1,098 reviews

SHIPPING

If the product is in stock with us, expect delivery within 24 to 72 hours depending on your area for orders placed before 10:00 AM. If the product is not in stock, delivery will take approximately 10 days. Our delivery partners are Heppner and DPD, depending on the weight and volume of your order.

UniSpace 60/90-Minute Fire Rated Access Panel with Fire Protection

The UniSpace 60/90 Fire Rated Access Panel offers superior fire resistance of 60 or 90 minutes, along with sound insulation and airtight, smoke-tight performance.

Main Features

Fire Resistance: 60/90 minutes
Fireproof panel on both sides
Sound insulation according to ISO 10140-2
Airtightness: Class 4
Smoke Tightness: S200
Tunnel installation

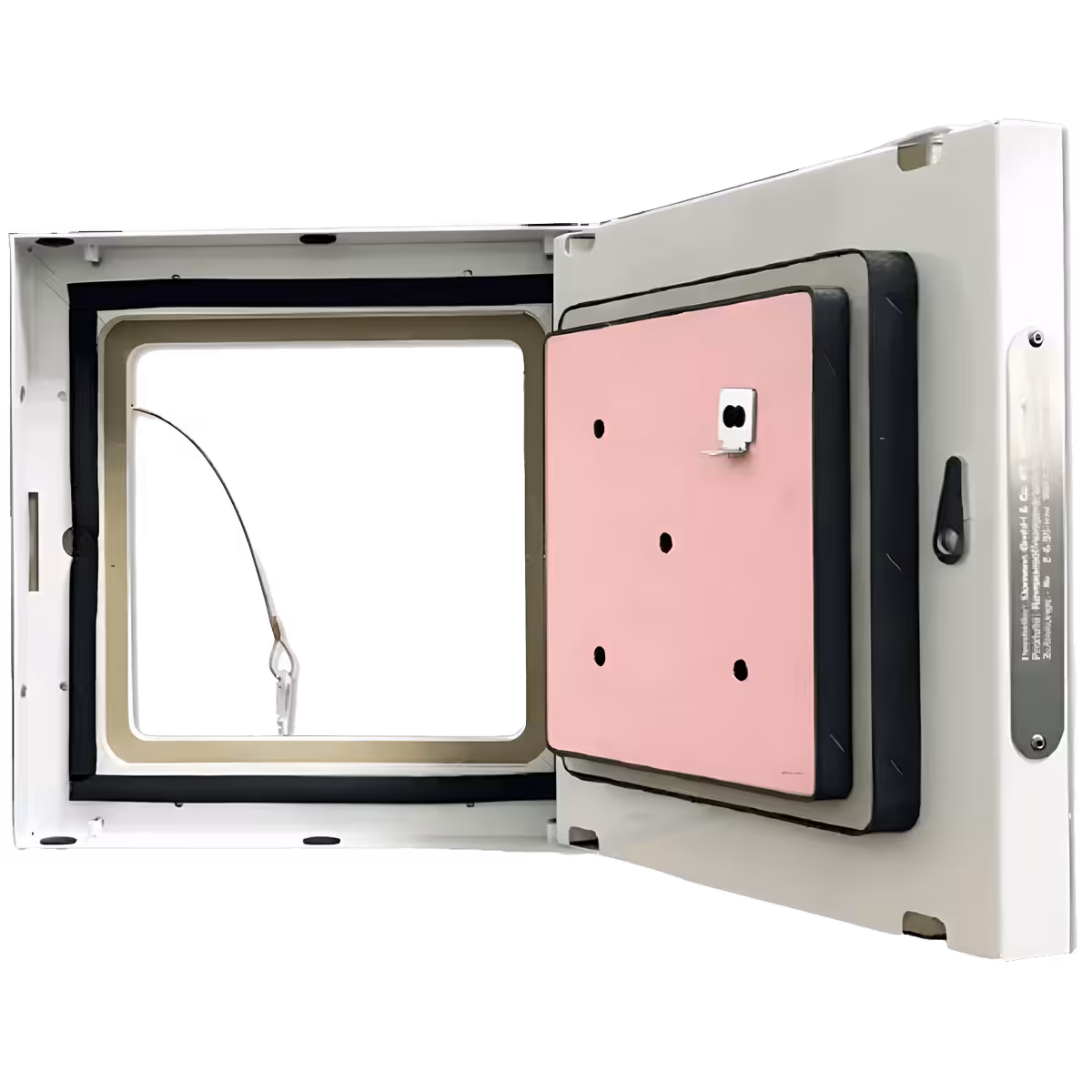

Interchangeable stopper and removable door
No additional fire protection required

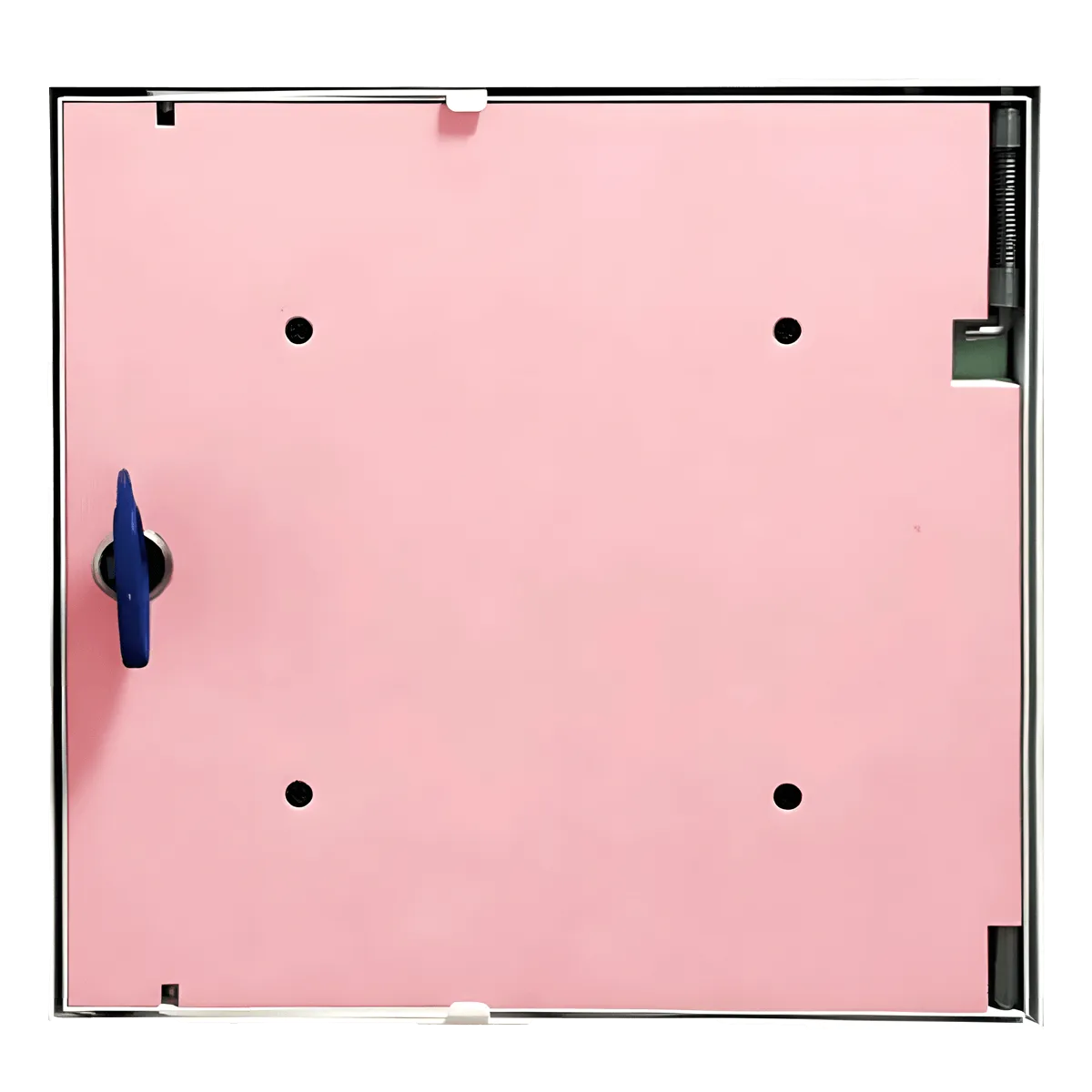

Square key lock, cylinder lock available on request
Easy installation
Custom sizes available upon request

Multiple Applications

The UniSpace 60/90 provides 4 distinct application options:

Fire-rated shaft (one side) – 60/90 minutes
Fire-rated shaft (both sides) – 60/90 minutes
Solid wall fire resistance – 60/90 minutes
Suspended ceiling fire resistance – 90 minutes

Sound Insulation and Airtightness

The UniSpace 60/90 meets sound insulation requirements under ISO 10140-2, with a performance rating of Rw (C; Ctr) = 39 dB according to ISO 717-1. It is airtight according to EN 1026:2016-09 with a Class 4 rating under EN 12207:2017-03 and smoke-tight to S200 under EN 1634-3 / DIN 18095 t1.

Easy Installation

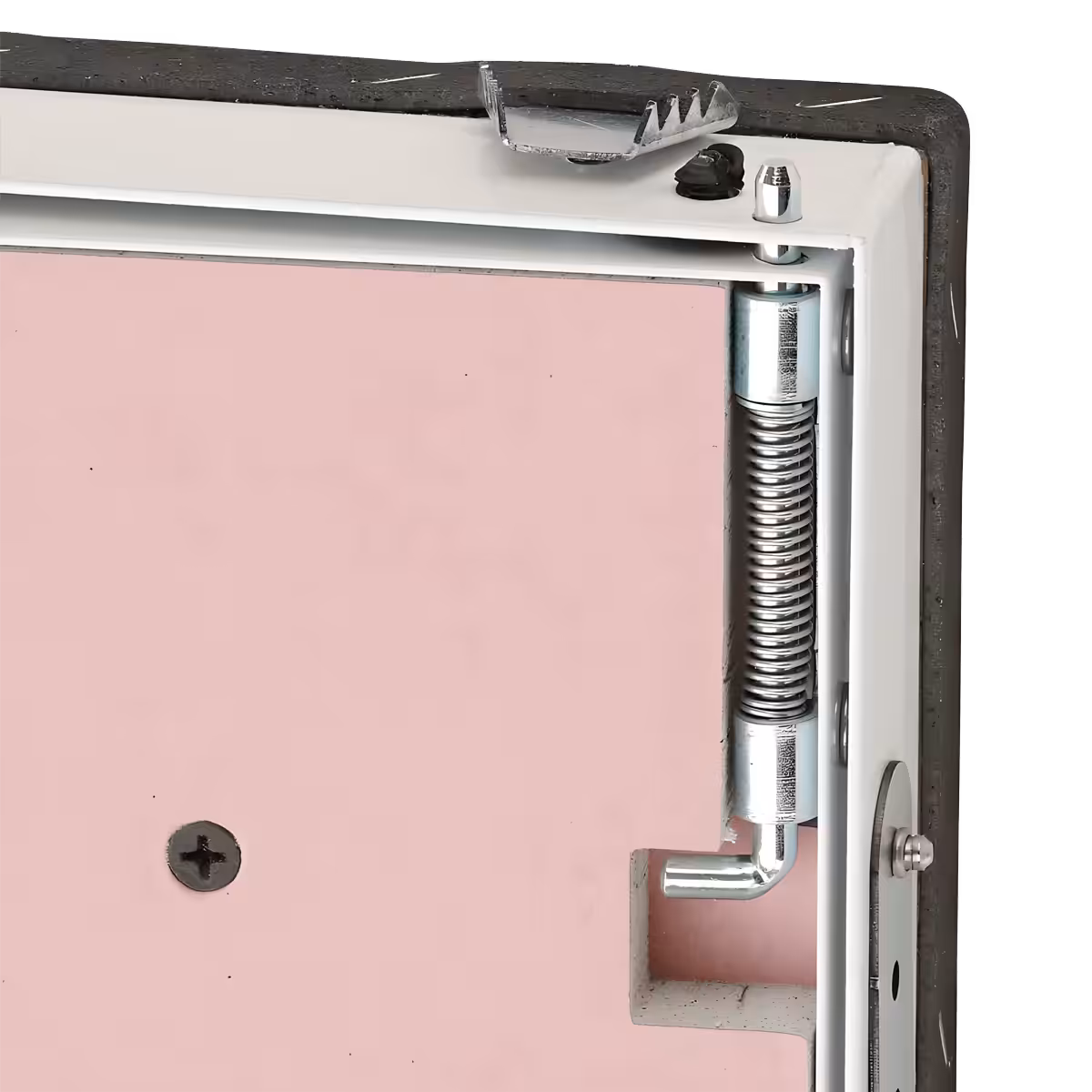

The UniSpace 60/90 is designed for straightforward installation, featuring an interchangeable stopper and removable door. No additional fire protection kit is required, ensuring simple setup and use.

Note: Custom sizes and cylinder lock options are available on request to suit specific project requirements.

Applications of the UniSpace 60/90 Fire Rated Access Panel

The UniSpace 60/90 is ideal for various environments where fire safety, sound insulation, and airtightness are critical. It is particularly suited for:

Residential Buildings: Perfect integration into walls and ceilings for safe, fire-resistant access to conduits.
Commercial Buildings: Suitable for offices, shopping centers, and spaces requiring secure access to technical infrastructure.
Industrial Installations: Provides effective fire protection and convenient access to critical systems.
Public Spaces: Ideal for schools, hospitals, and public facilities where fire safety and sound insulation are essential.

Benefits of the UniSpace 60/90 Fire Rated Access Panel

Fire Resistance: 60/90-minute fire protection, meeting the strictest safety standards.
Sound Insulation: Reduces airborne noise with Rw (C; Ctr) = 39 dB performance under ISO 10140-2.
Airtightness: Excellent Class 4 airtightness, ensuring energy efficiency.
Smoke Tightness: Prevents smoke penetration, rated S200 under EN 1634-3.
High-Quality Materials: Durable materials for reliable, long-lasting performance.
Easy Installation: Simple design with interchangeable stopper and removable door.
Custom Sizes: Available upon request to meet unique project needs.
Security: Standard square key lock, with a cylinder lock option for added security.

The UniSpace 60/90 Fire Rated Access Panel ensures outstanding fire resistance, sound insulation, and airtightness, making it the perfect solution for safe and secure technical access.

Weight	1,3 kg
Product Specifications	Airtight access panel, Fire-Rated Access Panel
Dimensions	300×300 mm, 400×400 mm, 400×600 mm, 500×500 mm, 600×1000 mm, 600×600 mm, 600×800 mm
Mounting Type	Ceiling, Service Ducts, Wall
Opening Mechanism	Square Key Lock
Access Panel Type	Hinges on the Length Side, Hinges on the Width Side, Insulated Access Panel
Fire Protection	F/EI/I 60, F/EI/I 90
Brand	Tempo
