Tempo Primus Airproof Access Panel – BBC 500x500mm

Tempo Primus Airproof Access Panel – BBC 500x500mm

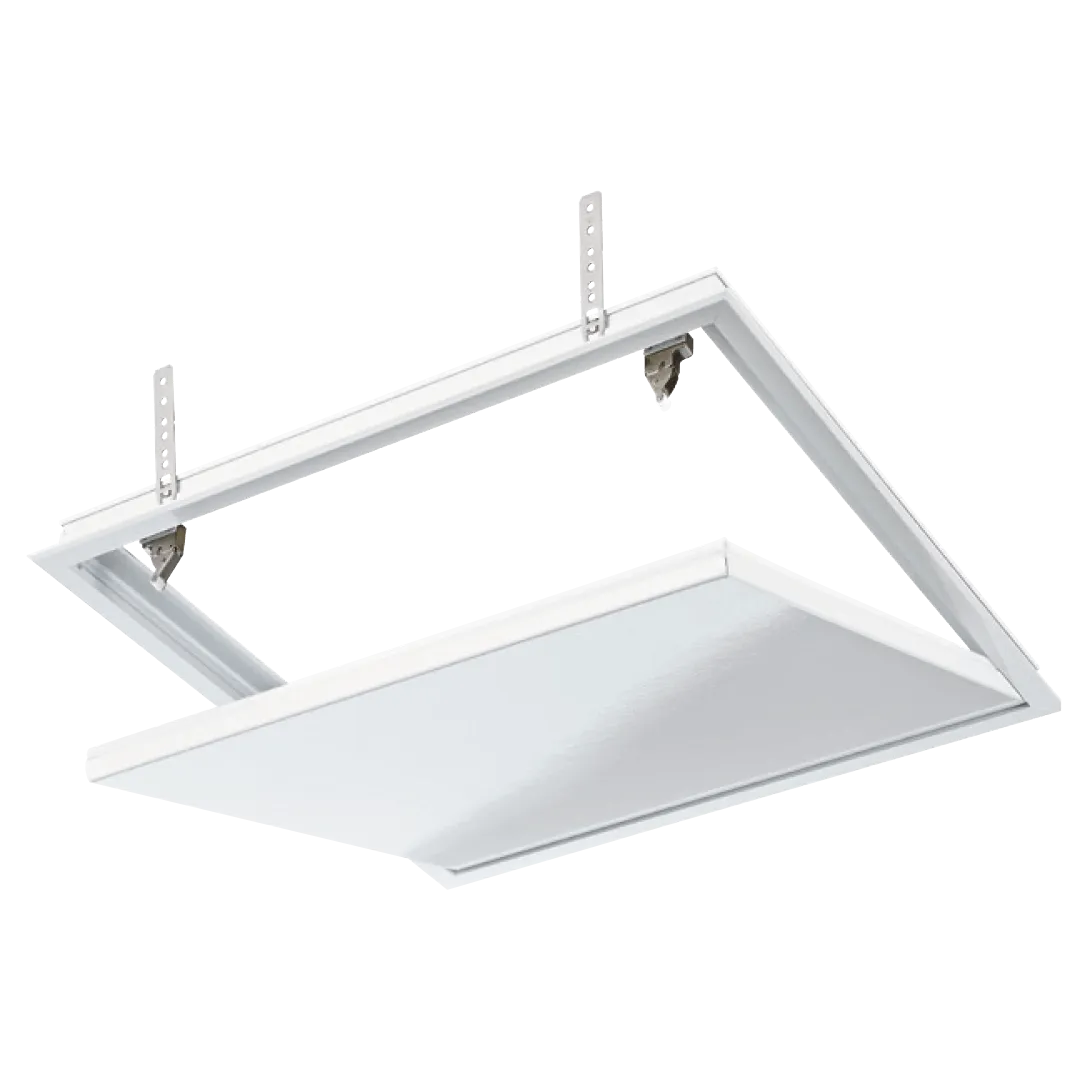

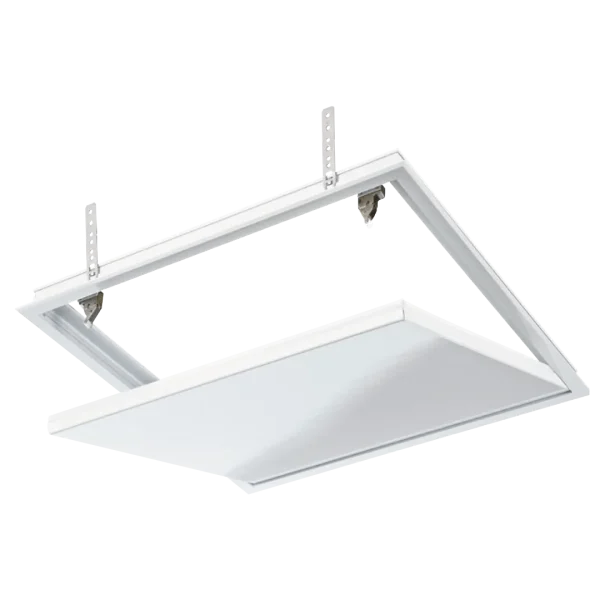

The Tempo Primus Airproof Access Panel ensures exceptional airtightness, dustproof, and smoke-tight performance, making it ideal for ceiling installations.

Key Features

• Durable Construction: Robust, torsion-resistant frame made from extruded aluminium profiles with galvanized steel door.
• Powder-Coated Finish: RAL 9016 white coating for a clean and professional appearance.
• Spring-Loaded Closure: Push-to-open and push-to-close mechanism ensures easy and secure access.
• Perimeter Seal: Airtight seal for maximum protection against air, dust, and smoke, certified to EN 14351-1 standards.
• Acoustic Insulation: Tested to ISO 10140-2 with results evaluated under ISO 717-1, providing sound reduction of up to 30 dB.
• Thermal Insulation: Includes 2x160mm mineral wool insulation as per DIN EN 13162 with a thermal resistance of RD = 8.47 m² K/W.
• Welded Corners: Ensures durability and stability, even with frequent use.
• Easy Installation: Wall anchors and perforated tabs allow secure and flexible mounting.

Detailed Design Features

• Spring Mechanism: Effortless opening and closing by pressing the door, ensuring long-lasting usability.
• Perimeter Seal: Provides optimal airtightness, dust protection, and smoke resistance for superior performance.

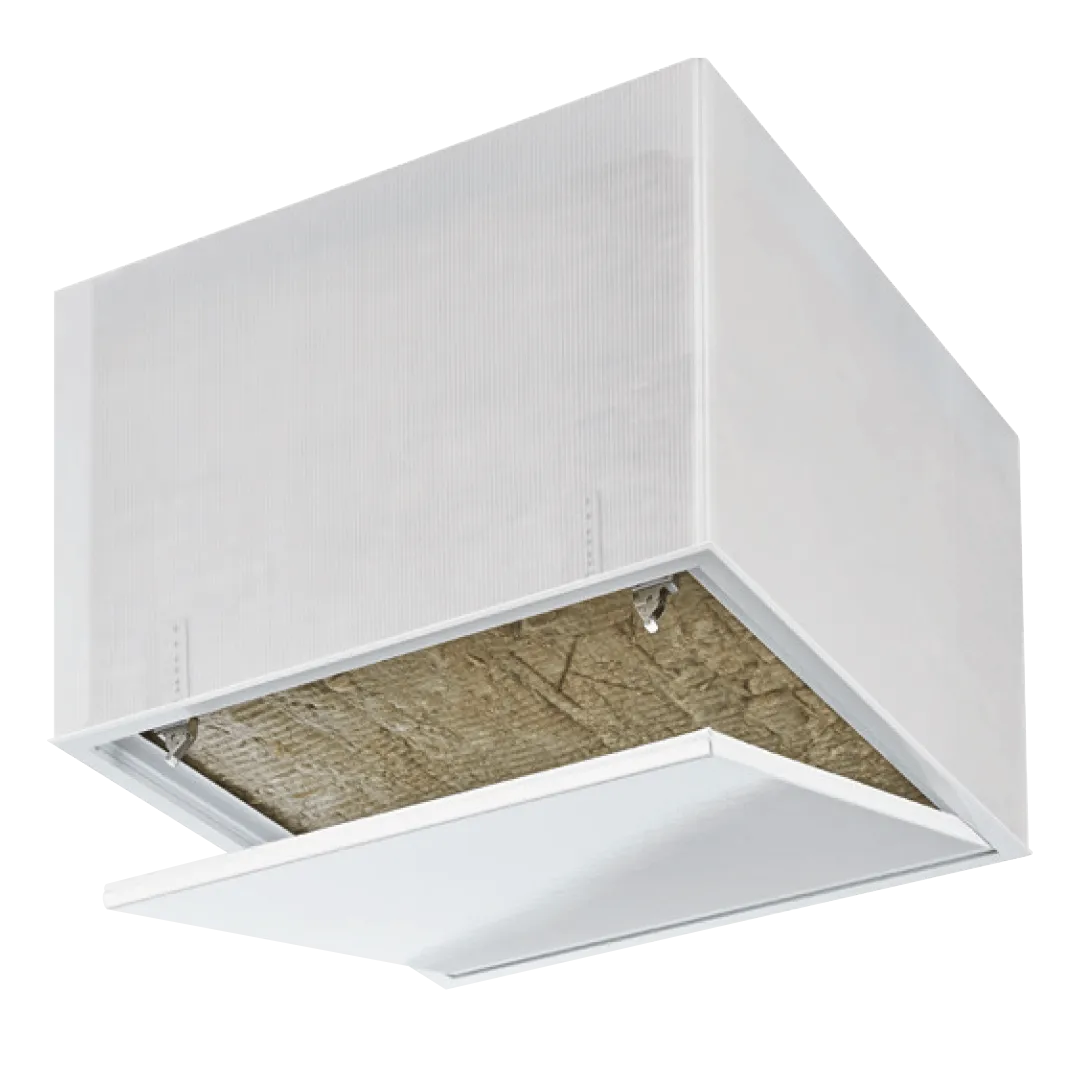

• Optional Insulation: Available with or without mineral wool insulation, offering enhanced thermal and acoustic properties.

Ideal Applications

The Tempo Primus Airproof Access Panel is perfect for environments requiring airtight and thermally insulated solutions, including:

• Technical ceilings and shafts
• Commercial and residential buildings
• High-demand acoustic or thermal spaces

Certified Quality: Tested and verified to meet the highest European standards for airtightness, insulation, and durability.
